TR8020 Black TR160 160mm x 40mm Aluminium Cockpit with Direct Front Wheel Mount

SKU 00092
€799.00
In stock
1
Product Details
trackracer


Trak Racer’s TR160 has infinite adjustment and the most expandable and rigid components in the business. The strength of the TR160 will ensure no flex is experienced and no loss of force feedback, even with the strongest servos on the market.

ADD MORE

Trak Racer TR160 Dimensions

trackracer

Introduction to Extruded Aluminium Profile Simulators

Since 2009 Trak Racer has been pioneering the Sim Racing industry with great value and well designed products. In recent years, Extruded aluminium has come into the sim racing space for benefits such as it’s strength, expandability and minimal setup costs for the manufacturer when compared to other simulators on the market like the Trak Racer RS6 and TR8.
Disadvantages of this type of simulator is additional setup time and more industrial aesthetics.

Extruded aluminium is a fixed cross-sectional length of aluminium, which has portions “removed” along the length, known as extrusions. This allows for the connection of multiple separate lengths of extruded aluminium which can be used to build simple to very complex structures using a nut that slides into the extrusion and securing with a screw. 80/20 is a registered brand of extruded aluminium (among many others) which is often interchanged with the generic term “extruded aluminium”. Because of the versatility and expandability, extruded aluminium is often used for creating racing simulators. The most common type of extrusion used for sim rigs is “t-slot extruded aluminium”. It features a t-shaped extrusion (most commonly on all sides).

Hand Crafted

What’s Included with the TR160

Carbon Steel = 3 x Stronger than Aluminium!

Fully Adjustable Direct Fit Wheel Mount

The Front-Mount steering wheel bracket is fully adjustable (back/forth and up/down angle) and is made out of 15mm thick Laser Cut Carbon Steel. This bracket is compatible with SimExperience, Lenze, Mige, OSW, Fanatec, SimuCube and more.


BONUS

Steel Side Seat Brackets

Simple mounting with a heap of positions and suitable for most side mount fibreglass seats.


BONUS

Seat Slider Rails

With dual-locking mechanism and adjustment bar.


Adjustable Two-way Pedal Mount
Flip to Mount at Ground Level or Mount
High Up above the 160mm Profile!

The TR160 Pedal Mount can be mounted to sit above or below the 160mm high aluminium chassis and pre-drilled for all major brand pedals. The clever design mounts inside the chassis for ground-level height or outside the chassis for above chassis height.

BONUS

Adjustable Shifter Mount

Pre-drilled for all the major brands, the included shifter mount mounts on left or right.


Unbeatable 5 Year Warranty

The TR160 has been put through the most harsh treatment and guaranteed to last for years.

Flex-Free and Premium Aluminium Chassis

The TR160’s main chassis is 160mm x 40mm profile with 4 T-Slots.


Level your Rig and Protect your Floors

The included rubber levelling and hard wood floor protecting rubber feet are adjustable to provide a stable floor surface

Perfectly Proportioned Chassis

The TR160 Chassis has been designed to suit all driver heights and most seats and peripherals on the market. Ready to be customised and expanded by you.

BLACK ANODIZED
160mm x 40mm

PREMIUM ALUMINIUM CHASSIS

Our Premium Fasteners along with our high-quality aluminium are able to withstand vibrations and also high levels of longitudinal and transverse forces. After completing exhaustive hours of testing with Direct Drive wheels including MIGE/OSW up to 30Nm and SimExperience AccuForce we can confidentially guarantee that the TR160 is able to withstand greater forces than 30Nm.

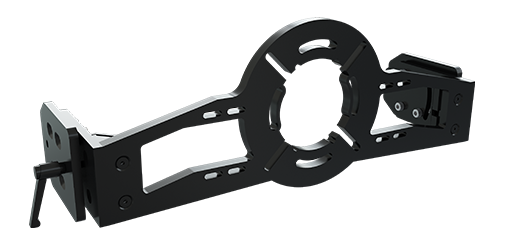

Thick STEEL Front-Mount Fully Adjustable Direct Fit Wheel Mount

The Front-Mount steering wheel bracket is fully adjustable (back/forth and up/down angle) and is made out of thick Laser Cut Carbon Steel with the equivalent strength of a 30mm Aluminium Plate. This bracket is compatible with the following wheels and motors:

  • SimExperience AccuForce V1, V2
  • Lenze MCS12 series
  • Mige 130 series
  • Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
  • Fanatec CSW, V1, V2, V2.5
  • SimuCube 2 Sport, Pro, Ultimate

Contact us if your wheel is not listed here

Adjustable Two-way Pedal Mount

The TR160 Pedal Mount can be mounted to sit above or below the 160mm high aluminium chassis and pre-drilled for all major brand pedals. The clever design mounts inside the chassis for ground-level height or outside the chassis for above chassis height.

The pedal baseplate is made out of thick carbon steel and has pre-drilled holes for all major brand pedals (see list below) and slots for left/right adjustment with Heusinkveld pedals and others. The pedal plate can be angle adjusted with the locking lever and moved forwards and backwards. This bracket is compatible with the following pedals (and more) :

  • Fanatec including CSL Elite Pedals, ClubSport V1/V2/V3
  • Thrustmaster including 2-pedals (all), T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500
  • Heusinkveld including Ultimate, Sprint and Pro
  • Quaife Throttle Pedal and Brake
  • HPP PRX 3P
  • Logitech G Series

Contact us if your pedals are not listed here

Fully Adjustable Wheel Mount
Fully Adjustable Wheel Mount

Fully Adjustable and Pre-Drilled Two-way Shifter Mount

This rigid gear shift mount sits firmly on the TR160’s 80mm x 40mm premium aluminium profile using 2 slots to allow you to slide up and down to your perfect position and angle adjust. The included bracket has it’s own sliding function for a more precise position as well as 3 angle adjustment. Shifter and handbrake bracket details

This bracket is compatible with the following shifters (and more) :

  • Fanatec including ClubSport Shifter, SQ
  • Thrustmaster including TH8A, RSTSS, TSS+
  • Quaife PSL Sequential
  • Heusinkveld SQ Shifter and Handbrake
  • Logitech Including G25, 27, 29, 920 Shifter
  • Others including DSD SQ Shifter, DSD Hydralulic Handbrake, RealGear RALLYpro Handbrake

Contact us if your pedals are not listed here

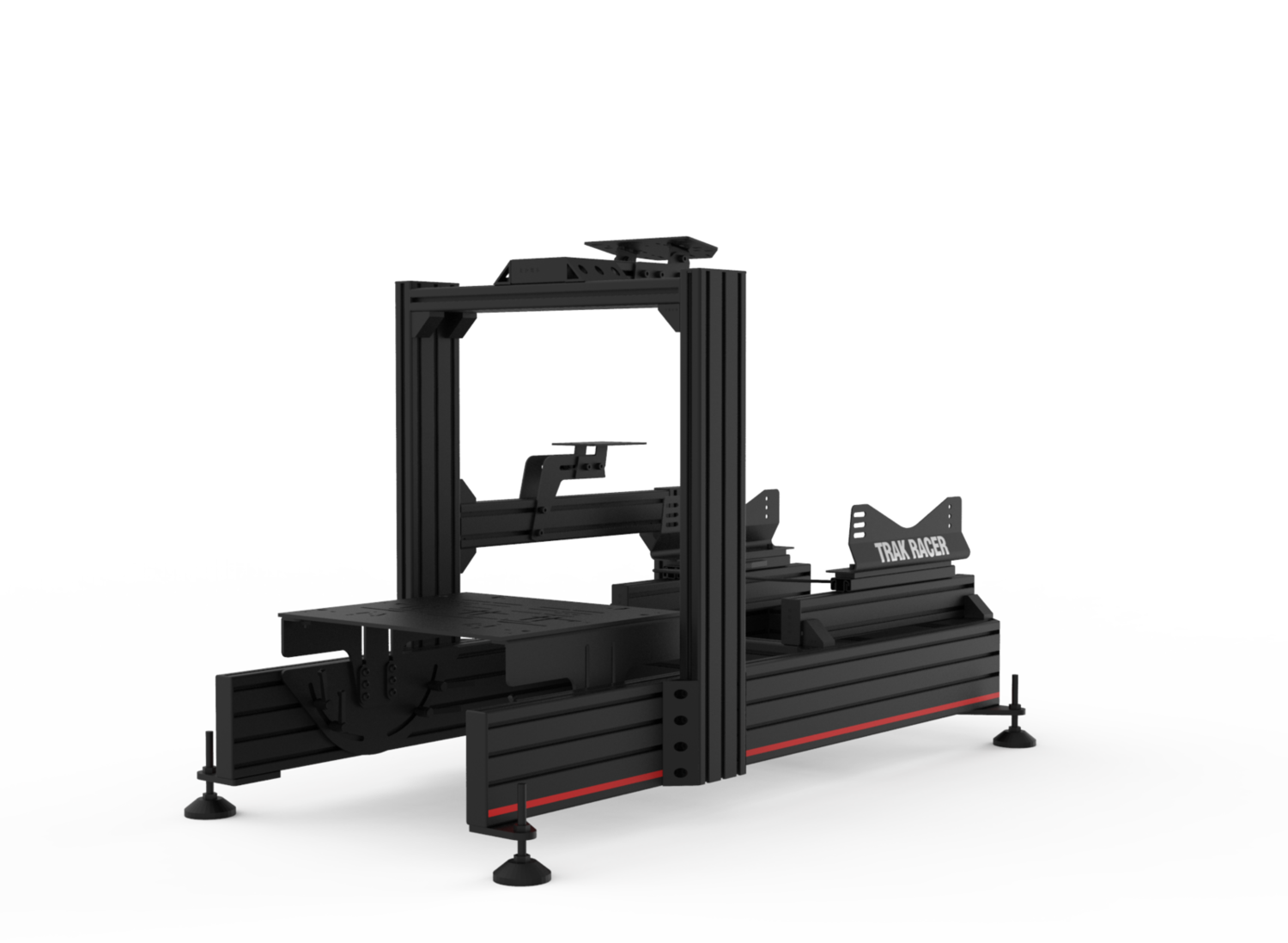

Trak Racer TR160 Overview

The TR160 has been designed with experience gained since Trak Racer started in 2008. The base structure is a 160 × 40mm high-end aluminium T-Slot extruded profile, anodized in black. Your choice of wheel mount will be supported by 120 × 40mm high-end aluminium T-Slot extruded profile, also anodized in black. Special anodized black 90-degree brackets connect the frame and laser cut carbon steel plates allow you to attach your peripherals. The TR160 is Direct Drive & Belt Drive Wheel Ready, Pre-drilled for all popular steering wheels, pedals and shifters on the market, comes with your option of 3 Stiffened Wheel Mounts for No-Flex Racing, has several add-on options including an Optional Integrated Monitor Stand (for 1-4 Monitors) and Button Box Mount.Designed and Engineered in Australia.

What's Included

  • BONUS Seat Mounting Brackets
  • BONUS Seat Sliding Rails and Adjustment Bar
  • BONUS Stabilizing Rubber Feet and Plates to protect floors and level your rig
  • BONUS Adjustable Gear Shift Mount
  • 160mm x 40mm Black Anodized Aluminium Chassis
  • 120mm x 40mm Black Anodized Aluminium Wheel Supports
  • 80mm x 40mm Black Anodized Aluminium Shifter Support
  • Direct Drive Wheel Mount with Full Slide and Angle Adjustment
  • Fully Adjustable Pedal Mount (pre-drilled for pedals)
  • All Mounting Screws, Brackets and Fixtures included
  • Assembly Tool Kit Included

Frame/Chassis Features

  • Constructed from high quality extruded aluminium in different profiles sizes including 10-Slot 160 x 40mm, 8-Slot 120 x 40mm and 6-Slot 80 x 40mm
  • 580mm wide and 1450mm long for firm stance when racing
  • Low ground clearance with hard wood rubber floor protectors
  • Finished in black anodized high quality aluminium

Thick Steel Direct Fit Wheel Mount

  • Full adjustment including angle and sliding function
  • Designed to fit SimExperience, Lenze, Mige, OSW, Fanatec, SimuCube and more
